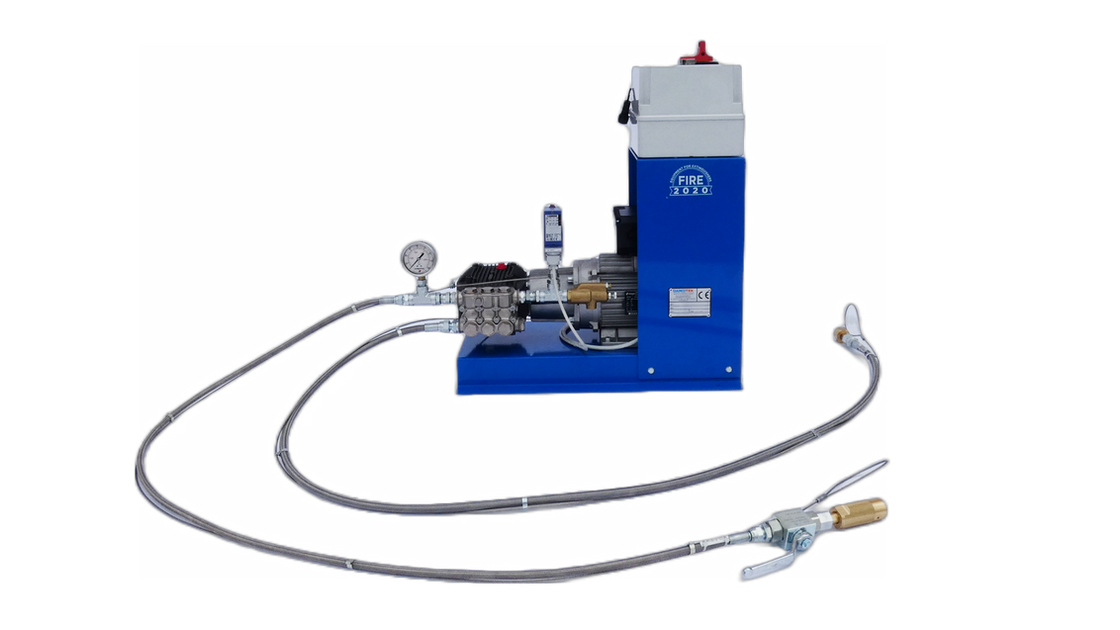

100/D1
Liquid CO2 transfer unit from cylinder to cylinder/extinguisher
Characteristics
The 100/D1 is a pump for transferring liquid CO2 from cylinder to cylinder or cylinder to fire extinguisher with a capacity of more than 2 kg and less than 10 kg. The machine is suitable for filling empty cylinders and is not recommended for top filling. Its low purchase and operating costs and ease of use make it an ideal tool for all maintainers who need to fill a limited amount of cylinders or fire extinguishers per day. Due to its small size, it is also suitable for installation on board mobile units.
Technical data
Model | 100/D1 |
Catalog code | MCBE201-U / MCBE201-A |
Flow rate | 420 Kg/h |
Voltage/Frequency (VAC/HZ) | 230/50 one-phase 400/50 three-phase |
Potenzapower | 1,5 kW |
Max pressure | 100 bar |
Overall dimensions (Lxlxh) | 380x700x730 mm |
Weight | 82 kg |
Standard equipment
PTFE coated PTFE supply hose with AISI304 stainless steel braid, length 2500 mm complete with cylinder connector | MCB/MAL02 |
PTFE delivery hose coated with AISI304 stainless steel braid, length 2500 mm complete with cylinder connector | MCB/MAV02 |
User and maintenance manual |
Accessori
Morsa manuale VIF/BIL per bloccaggio estintori su bilancia | MZVM002 |
Collettore per il collegamento delle bombole in alimentazione a due posti | RGFN200 |
Rastrelliera per il bloccaggio delle bombole in alimentazione a due posti | RGFN302 |
Adattatore a cono per estintori Ø45/155 mm | MCBE100 |
Kit VENTURI per il riempimento a distanza degli estintori con adattatore conico | ACC/VEN01 |
Bilancia elettronica modello ETW100-ETW150 |
